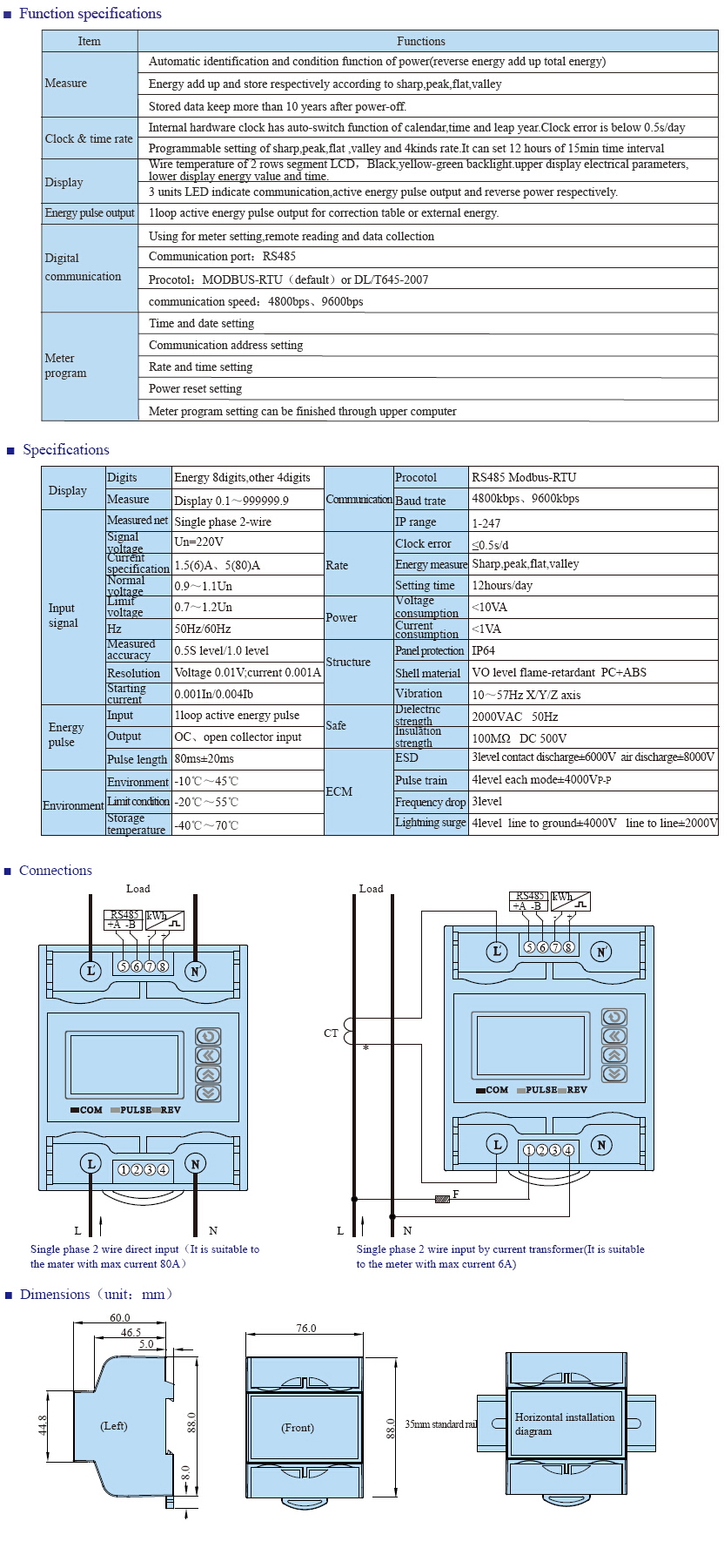

Model: DDZY8080-L Series Single Phase Energy meter

Optional Multi-power active energy accuracy(0.5S,1.0level)
When the load current≤80A,it doesn’t need external current transformer.(only limit 5(80)A product)
1loop active energy pulse(suit to A type pulse output standard)
1loop RS485 communicated port,optional MODBUS-RTU or DL/T645-2007 procotol
Industrial segment LED,with white backlight.Dividing 2 rows and displaying electrical parameter and energy information.
True virtual value measure,parameters and energy information display fixedly and automatically,or through converting on the panel key.
It accord with DL/T 614、GB/T 17215 relevant technical requirement of electronic energy meter.
Optional rate function,setting max 12 hours/day,total 4 kinds rate.
